Brother XP3 Luminaire 3 Innov-ís
Brother XP3 Luminaire 3 Innov-ís
Brother XP3 Luminaire 3 Innov-ís
Brother XP3 Luminaire 3 Innov-ís
Brother XP3 Luminaire 3 Innov-ís
Brother XP3 Luminaire 3 Innov-ís

Brother XP3 Luminaire 3 Innov-ís

Regular price $24,999.00 Sale price$23,999.99 Save $999.01
Shipping calculated at checkout.

  • In stock, ready to ship
  • Inventory on the way

Due to the size and weight of this item, extra shipping charges may apply. Please contact us for a personalized shipping quote based on your location.

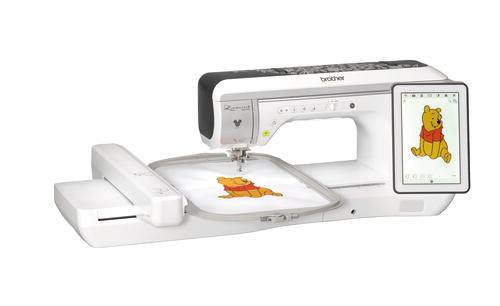

Say Hello to the Luminaire 3 Innov-ís  XP3 — the latest and greatest sewing, embroidery, and quilting machine from Brother. In addition to our revolutionary StitchVision projection technology, the Luminaire 3 has powerful wireless LAN capabilities, so you can transfer embroidery designs directly from your PC. You can even send images from a smart phone or tablet, get alerts when it’s time to change thread, and enable multiple Brother machines to work together. It’s a machine that’s as brilliant as your ideas.


  • Enhanced StitchVision Technology Preview, audition, and edit your designs and stitches directly on your fabric in a 5" x 3" virtual preview area‡ through an intelligent projection of light. Project a guideline marker line and grid on your fabric material to light your path with precision, ideal when creating multiple rows of stitches, parallel stitching, pin tucks, or decorative stitches
  • Large 10 5/8" x 16" Embroidery Area Create larger-than-life embroidery with ease. Frames feature rubber plates on both sides for a superior grip on fabric, while an ergonomic spring lever release enables easier, clamp-free hooping. Included frames: 4" x 4", 5" x 7", and 10 5/8" x 16", and 10 5/8" x 10 5/8".
  • Yarn Couching and Ornate Long Stitch Technique Fill in alphabet characters using yarn to give it a 3D effect. Upper case (approx. 3" tall), lower case, numbers, and all characters are resizable for even more flexibility. Choose a geometric enhancement with one of the 10 Long Stitch patterns, which resembles string art with long stitches layered to create a unique embellishment.
  • Large 10.1" Built-in High-definition LCD Display with Capacitive Technology View the 1,554 built-in embroidery designs, including 192 Disney designs, and more, on the large 10.1" LCD colour display with capacitive technology. The intuitive touch screen works like a tablet with familiar sliding, swiping, scrolling, and pinch-to-zoom for viewing detailed steps, categories, and designs.
  • Mobile Apps to Connect Wirelessly Be alerted on your mobile devices when it’s time to change thread or your project is complete with the My Stitch Monitor app1. The My Design Snap mobile app1 lets you wirelessly transfer images to My Design Center from your smart device. The new Artspira mobile app1, available in Fall 2022, has downloadable embroidery designs, plus the ability to create your own designs by drawing on your mobile device.
  • My Connection Feature When connected to a wireless network, the communicative My Connection feature will let the Luminaire 3 and select ScanNCut DX machines talk to one another so you can send files back and forth between both devices for added efficiency.
  • Enhanced Accessory Feet and Multi-Function Foot Controller The Compact MuVit Digital Dual Feed Foot allows for smoother feeding and the ability to stitch thicker fabrics with ease. Included with the 17 accessory feet are a Monogramming Foot N+, Zigzag Foot, and Embroidery Couching Foot. An improved Multi-Function Foot Controller allows for easy toggling between functions with an updated angle of the heel and toe kick, and reduces the main pedal's spring load for easier stepping and load reduction.
  • Enhanced My Design Center Enjoy the incredible enhancements of the Brother-exclusive My Design Center, which include six new decorative fill patterns (for a total of 48), a 10-key input for sizing for better design editing, and a numbering system for stamp shapes for valuable referencing. A new fine-tip stylus pen is included for better drawing in My Design Center.
  • Edge-to-Edge Quilt Feature No need for a long arm as this feature lets you finish your quilt-top right on your Luminaire 3, even with a 10” x 10“ hoop! There are 10 patterns to choose from, and the easy-to-follow instructions walk you through the calculations, rows, and rehoopings. Complete king-sized quilts on your machine without the use of a long arm!
  • Stitch Tapering Function and Large Connect Embroidery Designs Use the Stitch Tapering function to add a professional taper to jeans, tops, and home décor. When it comes time to go big on your next embroidery project, the five large connect embroidery designs are a great starting point. Select from ornate flowers, birds, and other elaborate designs that range from 721mm x 383mm (28" x 15").

Basic Features

Accessory Storage Yes
Additional Specialty Feet Available Yes
Adjustable Screen Brightness Yes
Automatic Thread Cutter Yes
Branded Series Innov-is
Built-in Languages No
Built-In Memory Yes
Feed Dog Points 7
Memory Card Reader No
Mouse Capability by USB No
Needle Position Key (Up/Down) Yes
Needle Stop Position Up/Down Yes
Needle Threading System Automatic
Number of Presser Feet 17
Number of USB Ports 1
Presser Foot Leveling Yes
Realistic Preview Yes
Screensaver Yes
Specialty Feet Included Yes
Start/Stop Button Yes
Thread Sensor On/Off Yes
Thread Tension Automatic
Wide Table Included No

Sewing Features

Automatic Height Adjustment (AHA) Yes
Available Stitch Types Chain Stitch, Lock Stitch, Straight Stitch, Zigzag Stitch, Stretch Stitch, Overlock Stitch, Cover Stitch, Running Stitch, Back Stitch, Satin Stitch, Outline Stitch, Tacking Stitch
Back to Beginning Key Yes
Built-In Stitch Selections (Stitches) 824
Button Hole Styles 15
Independent Bobbin Winding Motor Yes
Knee Lifter Yes
Maximum Sewing Speed (Stitches Per Minute) 1050
Multi-Directional Sewing Yes
My Custom Stitch Feature Yes
Pivot Function Yes
Reinforcement/reverse Stitches Yes
Sideways Sewing Yes
Speed Control Yes
Stitch Length (mm) 5
Stitch Width (mm) 7

Embroidery Features

Adjustable Design Icon Size Setting Yes
Appliqué Creator Function Yes
Automatic Feed Thread Cutting Yes
Built-In Designs 1554
Color Shuffling Function Yes
Curved Text on Screen Editing Yes
Drag and Drop Editing Yes
Included Embroidery Hoops 4" x 4", 5" x 7", 10 5/8” x 16”, 10 5/8" x 10 5/8"
Maximum Embroidery Area 10 5/8" x 16"
Monogramming Font Styles Yes
My Custom Design Feature Yes
Onscreen Automatic Density Adjustment Yes
On-Screen Editing Yes
Print and Stitch Technology Yes
Sewing Decorative Stitches with Embroidery Arm Attached Yes
Space Reduction among Embroidery Alphabets Yes
Speed Adjustment Yes
Trial Position/Layout Function Yes


Carton Dimensions (W" x D" x H") 24.500 " x 35.000 " x 28.500 "
Carton Weight (lbs) 90.200
Unit Dimensions (W" x D" x H") 27.16" x 12.67" x 13.74"
Unit Weight (lbs) 43.21
